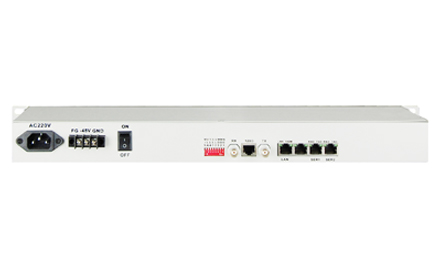

Framed E1-FE+2RS232 Converter

Type:FCC-E1F1R2 Message

Description:1channel framed E1 -FE +2RS232/422/485 converter，With E1 loopback detection function

Product Description
              This interface converter is, providing one framed E1 interface, one Ethernet interface and 2 serial interfaces to achieve 10/100Base-T Ethernet data transmission on the E1 channel.Providing  one Ethernet Bridge plus 2 serial interfaces via one E1 interface;
Functional Properties

Ø Based on self -copyright IC
Ø Can realize monitor and control of remote equipment, OAM management data did not  take up user’s timeslot and save E1 bandwidth

Ø E1 supports any timeslot set, the rate is 64K-2048K

Ø   The local device can forced the remote device rate follow it
Ø   Have indicator  when the remote device is power-off or E1 line is broken or lose signal;
Ø   Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop return;
Ø The Ethernet interface supports jumbo frames (2036 Bytes);
Ø Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering function
Ø Ethernet interface supports 10M/100M, half/full duplex auto- Negotination, support VLAN
Ø Ethernet interface supports AUTO-MDIX (crossed line and straightly connected line self-adaptable );
Ø   Have Ethernet monitor self-reset function, the equipment will not dead
Ø Provide 2 clock types: E1 master clock and E1 line clock;
Ø Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
Ø   Support SNMP Network Management
Ø   Serial Data Interface can be RS232/RS422/RS485/TTL optional
Ø Serial channel can transmit adaptable serial data asynchronously 300 Kbps-19200Kbps baud rate
Ø Serial data multiplexing in E1 support ITU-T R.111 jumping coding mode

Ø   The local RS232 serial data can command the remote RS232 serial data loop-back to the local. This loop-  back in the outer ring

       of RS232 data interface, you can test the RS232 interface chip without damage

Ø   Serial port interface lightning-protection reached IEC61000-4-5 (8/20μS) DM(Differential Mode): 6KV, Impedance (2 Ohm),

      CM(Common Mode): 6KV, Impedance (2 Ohm) standard



Technical Parameters

u  E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance), 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

u Ethernet interface (10/100M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

    Piece Weight: 1.2KG

u  Working environment

    Working temperature: -10°C ~ 50°C

    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

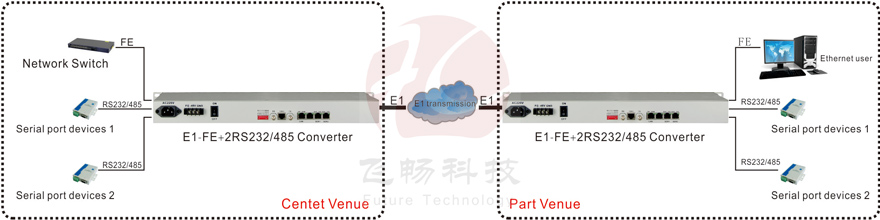

Application Scheme

Applications
