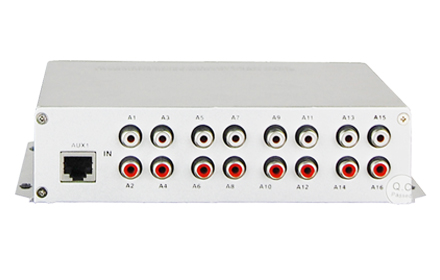

This digital Audio optical transceiver adopts digital Audio encoding and optical fiber transmission technology. 16 channel Audio, and serial data, on the single-core optical fiber. Rack installation or desktop installation can be optional.
Ø Complete digital optical fiber transmission platform, same platform multi-service flexible configuration;
Ø Provide General desktop, Mini desktop, insert-card Rack;
Ø using 24Bit AD/DA audio, 128K sampling, studio grade transmission quality
Ø Provide bi-directional asynchronous data (Forward Direction and Reverse Direction)
Ø Asynchronous data, transmit rate more than 110-115.200Kbps
Ø Asynchronous data can be RS232/RS485/RS422/Manchester code
Ø Audio interface and Serial data interface provide three levels lightning-protection function，which can reach the ITU-T K.21 (10/700μs),
CM (6KV), Impedance (40 Ω) test;
u Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
u Audio
Audio input & output Level: 0.5-4Vp-pInterface Port: RJ45/RCA
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size: 132X140X31mm(WXDXH)
Piece Weight : 1.5KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

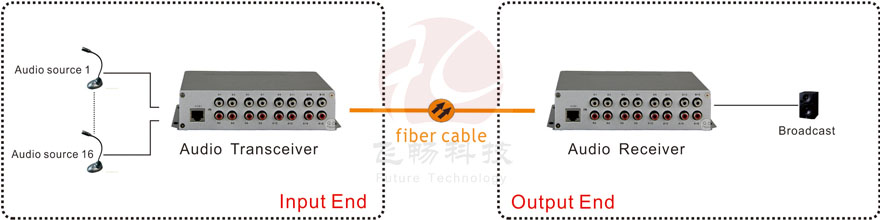

Applications
