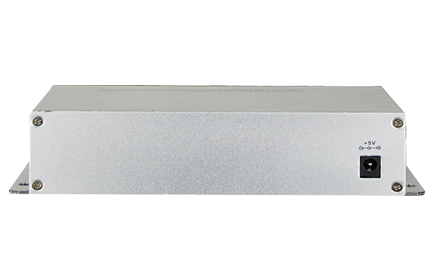

1 Channel Multi Service 3G HD-SDI Video Fiber Transceiver

Type:FCVH-V1T/R Message

Description:1 channel HD-SDI Or 3G SDI in the Light transmission , With data、Audio、Talkback、telephone、E1、Ethernet、dry connect……

Product Description
                Multiservice 3Gbps HD-SDI HD video optical transmitter / receiver uses digital coding technology, all the way 3Gbps HD -SDI video signals and data signals, audio signals, digital signals, the voice signal, E1 and Ethernet signals via a signal root achieve long-distance single-mode fiber bidirectional transmission, the maximum signal without distortion-free relay transmission 80Km. 3Gbps HD -SDI Optical high-definition digital TV signal format from 270Mbps to 2.97Gbps, 3Gbps HD -SDI video optical systems support signal SMPTE424M, SMPTE292, SMPTE344M, SMPTE259M and DVB-ASI (270M) and other digital television formats.
Functional Properties
Ø can provide normal desktop, concentrated plug-in frame in a variety of ways

Ø SD, HD, 3G automatically detects input, support 270Mbit / s - 1.48Gbit / s - 3Gbit / s rate; support new FULL HD Full HD 1080P / 60HZ

       3Gbps HD-SDI format signal,Transmission distances of up to 80KM;

Ø support SMPTE 424M (2.97Gbps / s), SMPTE 292M (1.485Gbps / s), SMPTE 344M (540Mb / s), SMPTE 259M (360Mb / s)

       and DVB-ASI (270Mb / s)

Ø band transmitter automatic cable equalization, 80M: 2.97Gb / s, 140M: 1.485Gb / s 250M: 270Mb / s
Ø transmitter and receiver with the way all the other SDI video output, and a LED indicates the status of SDI signal access
Ø data interface and video interface provides three mine-protected, by ITU-T K.21 (10/700 μS), common mode: 6KV, impedance (40 Ω) test
Ø asynchronous data available for RS232 / RS485 / RS422 / Manchester code
Technical Parameters

u   3Gbps HD-SDI Video

    Video bandwidth：270Mb/s – 2.97Gb/s

    TV signals：SMPTE 424M、SMPTE 292M、SMPTE 344M、SMPTE 259M和 DVB-ASI

    Reflection loss：>15DB
    Balanced： 250m @ 270Mbit/s,140m @ 1.485Gbit/s,80m @ 2.97Gbit/s

     Interface: 75 BNC

u   Audio

    Audio input & output Level: 0.5-4Vp-p
    Audio input & output impedance: 600Ω (balance / imbalance)
    Audio Bandwidth: 20Hz~20KHz
    Nonlinear distortion coefficient: < 1 %
    Audio signal-to-noise ratio (weighted): S/N>85dB

    Interface Port: RJ45/RCA

u   Date interface

    Data Interface:  RS-232、RS-422、RS-485、TTL
    Data Mode:  NRZ、Manchester、Bi-phase
    Data Rate:  110bps-115.200Kbps
    Interface Port:  RJ45

u  Switch

    Respond Time: <0.5ms
    Switch Signal: 30VDC/0.5A

u  Optical

    Respond Time: <0.5ms
    Switch Signal: 30VDC/0.5

    Ringing voltage：75V
    Ringing frequency：25HZ
    Wave Length：1470,1490,1510,1530,1550,1570,1590和1610nm
    Fiber：Single-mode Fiber 9/125um
    Optical interface：FC 、SC、ST
   Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
   Transmission distance may also be limited by fiber optic bandwidth.
u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤5W

u   Dimension

    Product Size:         186X138X31mm(WXDXH)

    Piece Weight :      1.5KG

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
